VNCG050 Fine Grade Vapour Nickel Coated Graphite
$5.00
VNCG050 is the fine-particle variant of Weber’s Vapour Nickel-Coated Graphite. It is purpose-engineered for form-in-place (FIP) dispensed gaskets, thin-film conductive mediums, and any specialized application where reduced particle size is mandatory without sacrificing volume resistivity or batch-to-batch repeatability.
1000 in stock
Description
The only nickel-coated graphite made with Weber’s proprietary Nickel Vapor Deposition (NVD) technology.
VNCG050 is the fine-particle variant of Weber’s Vapour Nickel-Coated Graphite. It is purpose-engineered for form-in-place (FIP) dispensed gaskets, thin-film conductive mediums, and any specialized application where reduced particle size is mandatory without sacrificing volume resistivity or batch-to-batch repeatability.
About Weber’s Vapour Nickel Coated Graphite Powders

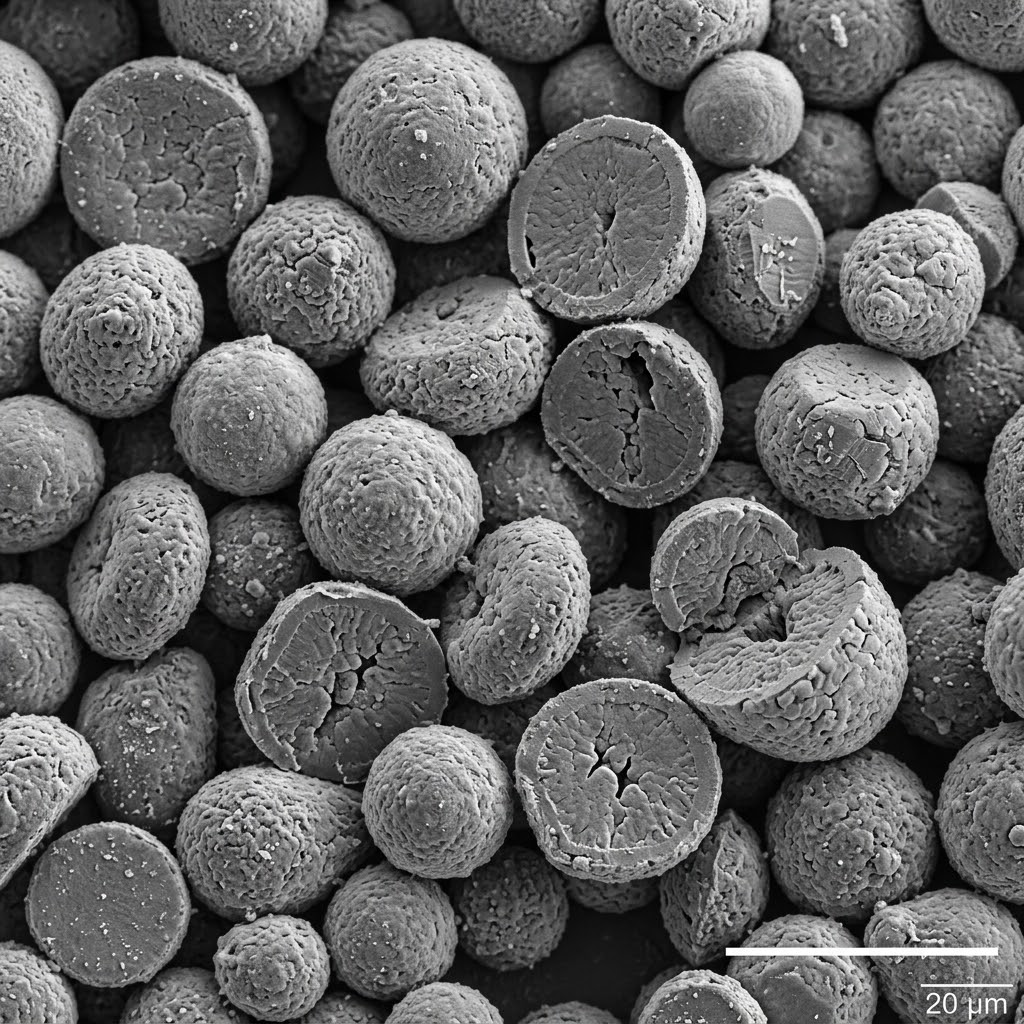

Weber’s VNCG is a high-performance conductive filler built for demanding electronics and shielding applications. Every grain of graphite is encapsulated with 99.9% pure nickel, deposited atom by atom through a true vapor-phase process. The result is a uniform, high-purity coating that maximizes electrical conductivity and delivers the kind of consistency that plated or chemically coated fillers can’t match.
That consistency comes from the process itself. For over 30 years, Weber has advanced the science of vapometallurgy, and NVD is where that experience shows. Because the nickel is vapor-deposited rather than plated or chemically bonded, each batch comes out reliable and repeatable, so you get the same performance run after run.
VNCG is developed and manufactured exclusively by Weber. If you need dependable conductivity with a coating structure conventional methods simply can’t produce, this is it.
Typical Applications
- Conductive adhesives and epoxies
- Electrical transfer tapes and films
- Precision conductive elastomers & sealants
- Automated Form-in-Place (FIP) dispensed gaskets
Quality & Capabilities
- C of A with PSD, apparent density & nickel content every batch
- Mastersizer 3000 sizing; RoTap screen analysis available
- On-site tap density & volume resistivity testing
- Custom R&D coating, incl. alternative & non-spherical substrates
- Coats spherical and non-spherical substrates
- MOQ 55 lb / 25 kg pails; 18 pails per pallet
Typical Analysis
| Product | Nickel (wt%) | D10 (µm) | D50 (µm) | D90 (µm) | Tap (g/cc) | Apparent (g/cc) | Vol. Res. (mΩ-cm) |
| VNCG050 | 57–63 | 35 | 50 | 80 | 1.8 | 1.2–1.5 | <5 |
Volume resistivity measured in silicone rubber at 2:1 filler-to-rubber by weight. Particle size distribution measured on a Mastersizer 3000. A Certificate of Analysis with PSD, apparent density and nickel content is supplied with every batch.
Additional information
| 99.9% Pure Nickel Cores | Encapsulated atom by atom with zero plating salts |
|---|---|
| Continuous, Closed Shell | Minimal exposed graphite ensures highly repeatable, uninterrupted electrical networks within the host polymer. |
| In-Service Durability | Eliminates shell cracking or separation during compounding shear, high-pressure compression, flexing, or thermal cycling. |
